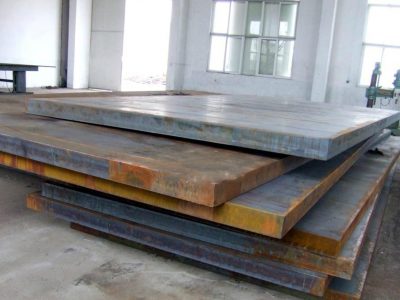

HIGH MANGANESE STEEL PLATE
SPECIFICATION
| Material Grade | High Manganese Steel Plate |
| Type | PLATE |
| Thickness | >5 mm |
| Brand | INDIAN |
| Size | 1250MMX2500MM/5000MM |
| Material | High Manganese Steel Plate |
| Usage/Application | Shot Blast Equipment Liners - Abrasive,Non-Magnetic Applications - RR Bolster Plates |
| Shape | PLATE |
| Surface Finishing | BRIGHT |
| Standard | INDIAN |
RANGE
The “Hadfield” grade has an original hardness of approximately 220 Brinell. With continued impact and /or compression it will surface harden to over 550 Brinell. It should be noted that only the outer skin surface hardens. The under layer remains highly ductile and tough. As the surface wears, it continually renews itself becoming harder and harder.
Manganese steel is austenitic steel which means it is non-magnetic. This property makes it useful in many applications such as bottom plates for lifting magnets – separator drum shells for magnetic materials – wear shoes on electric brakes etc.
ADVANTAGES :
Resistance to high abrasion and severe impact
Capacity of cold work hardening hardness to 550 BHN
To increase hardness from 200BHN (in as delivered plate) up to an in-service hardness of at least 600BHN
Have non-magnetic properties.
Provide Maximum Wear Life.
Exceptionally high toughness & ductility
Easy gas cutting & good weld ability
APPLICATION :
Shot Blast machines & Cabinets
Wheelabrator
Dust Collector
Shake out dates
Sintering Seal Bars
Screens
Crusher Liners
Grader Blades
Elevator Buckets
Baffle Plates
Stone Chutes
Bucket Liners
Crusher Jaws
Hammers
Chain Wear Bars
Grizzly Bars
MANGANESE ADVANTAGES
WORK HARDENING refers to the fact that the steel becomes harder and harder the more it is impacted or compressed
The “Hadfield” grade has an original hardness of approximately 220 BRINELL. With continued impact and /or compression it will surface harden to over 550 BRINELL. It should be noted that only the outer skin surface hardens. The under layer remains highly ductile and tough. As the surface wears, it continually renews itself becoming harder and harder.
Manganese steel is austenitic steel which means it is non-magnetic. This property makes it useful in many applications such as bottom plates for lifting magnets – separator drum shells for magnetic materials – wear shoes on electric brakes etc.
